FRP Cable Trays :

Sintex FRP Sections are manufactured from an advanced formulation of thermosetting polyester resin with fiber glass reinforcement, on state-of-the-art, electronically controlled pultrusion plants. Sintex FRP Cable Trays are fabricated using Sintex FRP (Pultruded) Sections using S.S. hardware.


Cable trays are used to support power cables and control cables for indoor and outdoor applications. G.I/M.S. cable trays erode, corrode and spread heat, thus lead to power interruptions. Sintex FRP Cable Trays are safe, durable and cost effective for routing and supporting cables. Manufactured as per NEMA/BIS consultants" specifications, Sintex FRP Cable Trays are available in the following types:

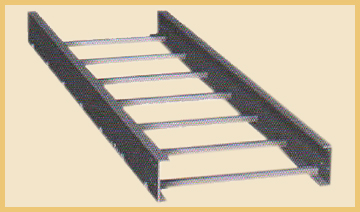

  • Ladder Type FRP Cable Trays

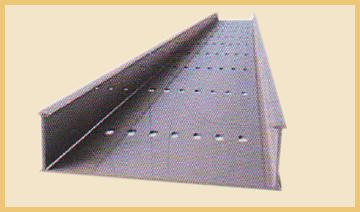

  • Through Type FRP Cable Trays
  • Channel Type FRP Cable Trays


FEATURES :

  • Excellent weather ability-UV stabilized
  • UV stabilized
  • High load-bearing capacity
  • Non-magnetic
  • No corrosion and no chemical erosion
  • Maintenance-free
  • Easy to install
  • Light weight
  • Fire retardant
  • Suitable for horizontal, vertical layout

LOAD BEARING CAPACITY

Sintex FRP Cable Trays have load bearing capacity similar to G.I./M.S. Cable Trays. The load bearing capacity complies to NEMA/BIS/Consultants" requirements and customers" needs.

MANUFACTURING PROCESS

Sintex FRP Sections are manufactured from an advanced formulation of thermosetting polyester resin with fibre glass reinforcement on state-of-the-art electronically controlled pultrusion plant. Sintex FRP Cable Trays are fabricated using Sintex FRP Sections. Wherever applicable, S.S. rivets & S.S. hardware are used. Ready to use prefabricated FRP cable trays and FRP accessories are supplied in the sizes as per the needs of the customers.

FRP Cable Management Systems :


FRP cable Trays are Manufacturer with using lsoothelic polvester Resin / peraothelic polvester resin with Uv and FR Grade to meet standard lS G746, and Constructed and Design as per standard NEMA FG- 1993. with Glass contact between 55 - 65% for better mechanical Strength. We Also provide FRP Cabie Travs as oer customers Desisn and Drawines.


FRP TADDER TYPE CABLE TRAYS & ASSEMBLLES :

H-Heignt (MM) T-Thkloet (MM) W - Width (MM)
80 3 3
80 4 4
100 4 4
100 5 5
150 4 4

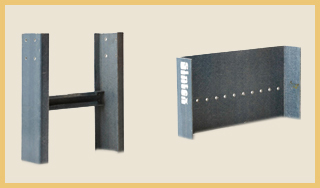

Side channel for FRP cable trays 80 × 30 × 3 MM
80 × 30 × 4 MM
100 × 30 × 4 MM
100 × 30 × 5 MM
150 × 50 × 4 MM
150 × 75 × 4 MM
Rung Pipe 25 × 25 × 19 MM
radius bend
radius bend
radius bend
radius bend
radius bend
radius bend
radius bend
radius bend
radius bend
radius bend
